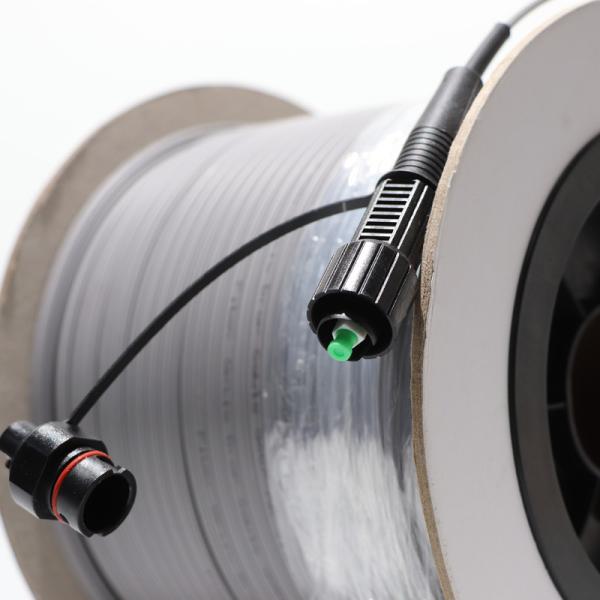

SC APC FTTH Pre Connectorized Drop Cable Pigtail G657A1 IP68

Name: SC APC FTTH Pre Connectorized Drop Cable Pigtail G657A1 IP68
Brand: UNIFIBER-OEM
Price: 1 USD

Wholesale SC APC FTTH Pre Connectorized Drop Cable Pigtail G657A1 IP68 from china suppliers

Brand Name : UNIFIBER-OEM

Model Number : FTTH Pre-Connectorized Drop Cable

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : PE bag

Product : Huawei Mini SC/APC Outdoor FTTH Pre-Connectorized Drop Cable Pigtail

Connector : Huawei Mini SC/APC

Waterproof Grade : IP68

Fiber : G657A1

Cable Structure : Flat 2.0*5.0mm

Application : FTTH

Contact Now

The mini SC connector is factory-terminated, environmentally sealed and hardened connectors to reduce the cost and the time of drop cable deployment in optical access networks.

APPLICATION
Fiber optic communications in harsh outdoor environments
Outdoor communication equipment connection
waterproof fiber equipment SC port
Remote wireless base station
FTTx wiring project

FEATURES
compact size, easy to operate, durable
Easy connection to hardened adapters on terminals or closures
Reduce welding, connect directly to achieve interconnection
IP67 water and dust protection
Spiral clamping mechanism ensures long-term reliable connection
Guide mechanism, can be blinded with one hand, simple and quick, connect and install
Seal design: It is waterproof, dust-proof, anti-corrosion and so on

Specification

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

SC APC FTTH Pre Connectorized Drop Cable Pigtail G657A1 IP68
