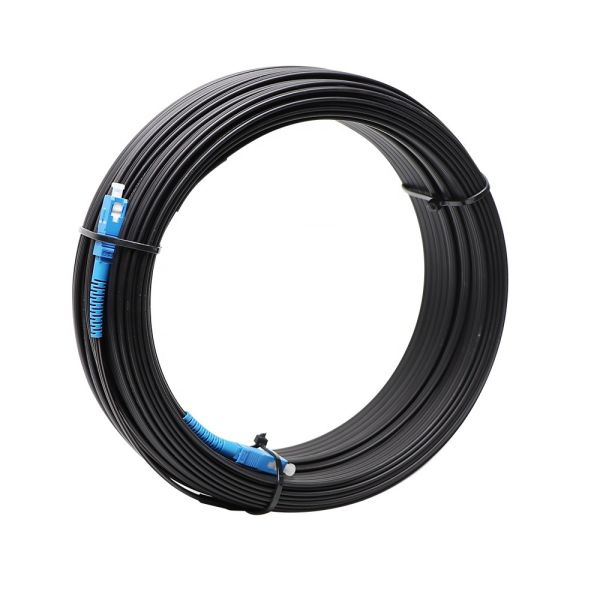

SC APC SC UPC G657A2 FTTH Drop Cable Patch Cord Single Mode KFRP

  • 1
  • 2
  • 3

Brand Name : UNIFIBER-OEM

Model Number : FTTH Drop Cable Patch Cord

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : PE bag

Product : SC/APC-SC/UPC Single Mode G657A2 FTTH Drop Cable Patch Cord

Connector : SC/APC or SC/UPC

Fiber Type : G657A2

Cable Structure : 2.0*5.0mm Self-Supporting

Cable Jacket : LSZH

Application : FTTH

Contact Now

FTTH drop cable patch cord is used to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling.They are good to use for fiber to the home last mile solution, it always come with different counts from 1, 2, 4 counts.

Features

Good mechanical and enviromental characteristic

Anti-UV charateristics meet the requirements of relevant standards
The mechanical charateristics meet the requirements of relevant standards

Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission
Meet various requirements of market and clients

Application

FTTH (Fiber to the Home)

CATV System
Telecommunications
Optical Networks
High speed transmission Systems
Testing instruments

Specification

Number of fiber
1~24core
strength member
material
Galvanized steel wire/FRP/KFRP
diameter
2*(0.5~0.8)mm
Self support Messenger wire
material
Galvanized steel wire
diameter
1.0mm
Outer sheath
material
LSZH
diameter
1.8±0.2mm
Cable size (Height * width)
2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness
Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness
0.5~0.7mm
Cable weight
1~2core
18.2KG
4-6 core
18.5KG
8~24core
54KG

SC APC SC UPC G657A2 FTTH Drop Cable Patch Cord Single Mode KFRPSC APC SC UPC G657A2 FTTH Drop Cable Patch Cord Single Mode KFRP
