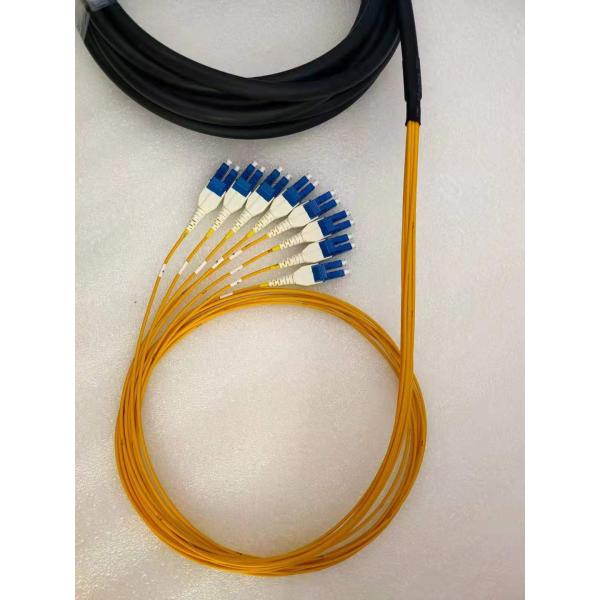

OS2 16 Core Breakout Fiber Patch Cable Reverse Polarity LC Uniboot

Name: OS2 16 Core Breakout Fiber Patch Cable Reverse Polarity LC Uniboot
Brand: UNIFIBER-OEM
Price: 1 USD

Wholesale OS2 16 Core Breakout Fiber Patch Cable Reverse Polarity LC Uniboot from china suppliers

Brand Name : UNIFIBER-OEM

Model Number : Reverse Polarity LC Uniboot

Certification : ROHS

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3~5 business days

Packaging Details : PE bag

Product : Reverse Polarity LC Uniboot Fiber Patch Cable

Connector : Uniboot LC to Uniboot LC

Fiber Counts : 16 Core

Fiber Type : Single mode OS2

Color : Black

Cable Jacket : LSZH

Length : Customized

Contact Now

Reverse Polarity LC Uniboot Single mode OS2 16 Core Breakout Fiber Patch Cable allows two fibers to be carried through a 2.0mm single jacket, used in high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Application
Data center ultra high-density cabling

Optical access network
Fiber optic communication networks

Telecommunication networks

Features
Uniboot (one boot) design

Bend insensitive fiber on all Multimode fibers, optional for Single Mode fibers

Optional push/pull tab

Available in OM3, OM4 and OS2

Flexible plenum rated jacket

Easily switch polarity without tools or damage to fiber

Parameter	SM			MM
Parameter	PC	UPC	APC	PC
Insertion Loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.4dB
Return Loss	≥50dB	≥55dB	≥60dB	/
Operating Wavelength	1310nm, 1550nm			850nm&1300nm
Ferrule Concentricity	≤1um			≤4um

OS2 16 Core Breakout Fiber Patch Cable Reverse Polarity LC Uniboot
