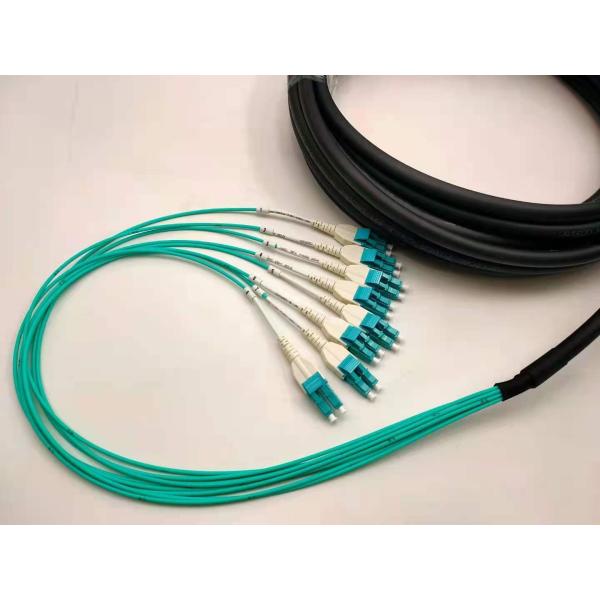

Switchable Uniboot LC Duplex Fiber Patch Cord Multimode OM3 16 Core

Name: Switchable Uniboot LC Duplex Fiber Patch Cord Multimode OM3 16 Core
Brand: UNIFIBER-OEM
Price: 1 USD

Wholesale Switchable Uniboot LC Duplex Fiber Patch Cord Multimode OM3 16 Core from china suppliers

Brand Name : UNIFIBER-OEM

Model Number : Uniboot Fiber Patch Cable

Certification : ROHS

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3~5 business days

Packaging Details : PE bag

Product : Polarity Switchable Uniboot LC Duplex Fiber Patch Cord

Fiber Type : Multimode OM3

Connector : Uniboot LC to Uniboot LC

Cable Jacket : LSZH

Color : Black

Length : Customized

Fiber Counts : 16 Core

Contact Now

Polarity Switchable Uniboot LC Duplex Fiber Patch Cord allows two fibers to be carried through a 2.0mm single jacket, used in high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Features
Bend insensitive fiber on all Multimode fibers, optional for Single Mode fibers

Uniboot (one boot) design

Available in OM3, OM4 and OS2

Optional push/pull tab

Easily switch polarity without tools or damage to fiber
Flexible plenum rated jacket
Custom lengths, jacket colors and labeling options

Application
Optical access network
Fiber optic communication networks

Telecommunication networks

Data center ultra high-density cabling

Parameter	SM			MM
Parameter	PC	UPC	APC	PC
Insertion Loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.4dB
Return Loss	≥50dB	≥55dB	≥60dB	/
Operating Wavelength	1310nm, 1550nm			850nm&1300nm
Ferrule Concentricity	≤1um			≤4um

Switchable Uniboot LC Duplex Fiber Patch Cord Multimode OM3 16 Core
