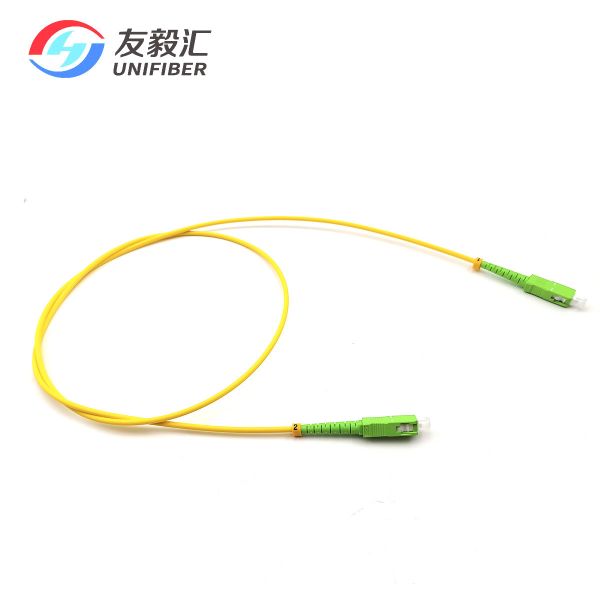

LSZH G657A2 Fiber Optic Patch Cord Simplex 3.0mm Single Mode SC APC

Brand Name : UNIFIBER-OEM

Model Number : SC/APC-SC/APC Fiber Optic Patch Cord

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3~5 business days

Packaging Details : PE bag

Product : SC/APC-SC/APC Fiber Optic Patch Cord

Fiber Type : Single mode G657A2

Cable Diameter : 3.0mm

Cable Jacket : LSZH

Connector : SC/APC-SC/APC

Jacket Color : Yellow

Contact Now

SC/APC-SC/APC Fiber Optic Patch Cord Single Mode G657A2 Simplex 3.0mm
1.Fiber optic patch cord is available in both singlemode and multimode versions.
2.Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC
profile and convex spherical end.
3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
APPLICATION
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical


FEATURES
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

Mode
Single mode
Multimode
Polish
UPC
APC
PC
Insertion Loss
≤0.30dB
≤0.20dB
≤0.20dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm
850/1310nm
Durability(500 Matings)
≤0.2dB
Operating Temperature
-40℃~+60℃
Storage Temperature
-45℃~+85℃
Fire Resistant
IEC 60794-2-30
Standards-Compliant
ROHS,IEC and GR-326

LSZH G657A2 Fiber Optic Patch Cord Simplex 3.0mm Single Mode SC APCLSZH G657A2 Fiber Optic Patch Cord Simplex 3.0mm Single Mode SC APC
