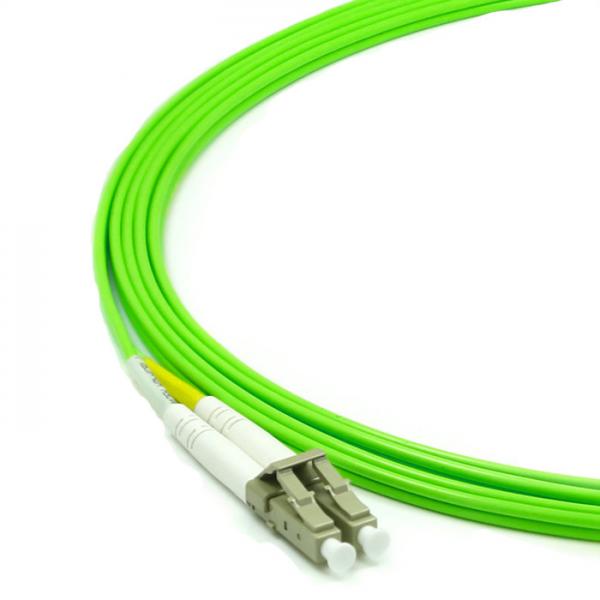

OM5 Multimode Wideband Fiber Patch Cable 2m LC To LC

  • 1
  • 2
  • 3

Brand Name : UNIFIBER-OEM

Model Number : LC-LC OM5 Multimode Wideband Fiber Patch Cable 2m

Certification : ROHS

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3~5 business days

Packaging Details : PE bag

Product : LC-LC OM5 Multimode Wideband Fiber Patch Cable 2m

Fiber Type : Multimode OM5

Connector : LC to LC

Cable Jacket : LSZH

Color : Green

Length : 1/2/3/5/7M or others

Fiber Counts : Duplex

Contact Now

OM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.

Features
Low insertion loss, high return loss
Excellent in repeatability and exchangeability
100% Insertion, Return Loss, End Face and Interference inspection
Excellent mechanical endurance
High credibility and stability
Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard
LSZH or OFNR(Plenum) available


Application
Data Centre
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network

Specification

Model
Single Mode (G652D,G657A1,G657A2,G657B3)
Multi Mode (OM1,OM2,OM3,OM4,OM5)
Polish
UPC
APC
UPC
Insertion Loss
≤0.30dB
≤0.20dB
≤0.20dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm
850/1300nm
Durability(500 Matings)
≤0.2dB
Operating Temperature
-45℃~+70℃
Cable Diameter
0.9mm, 2.0mm, 3.0mm
Cable Length 1m,2m,3m; Customized
Cable Jacket PVC,LSZH,OFNR,OFNP

OM5 Multimode Wideband Fiber Patch Cable 2m LC To LC
