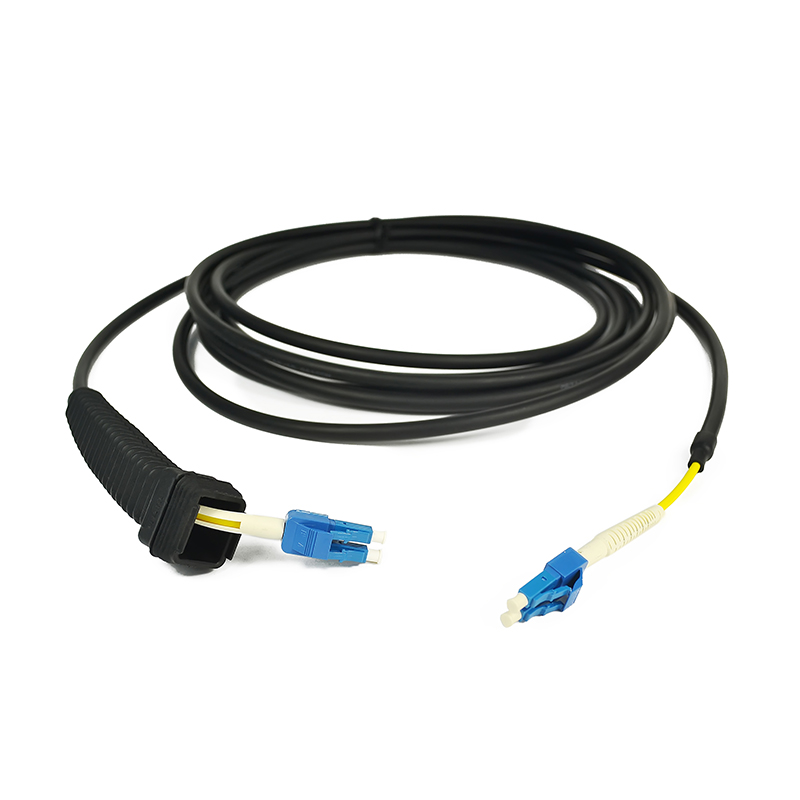

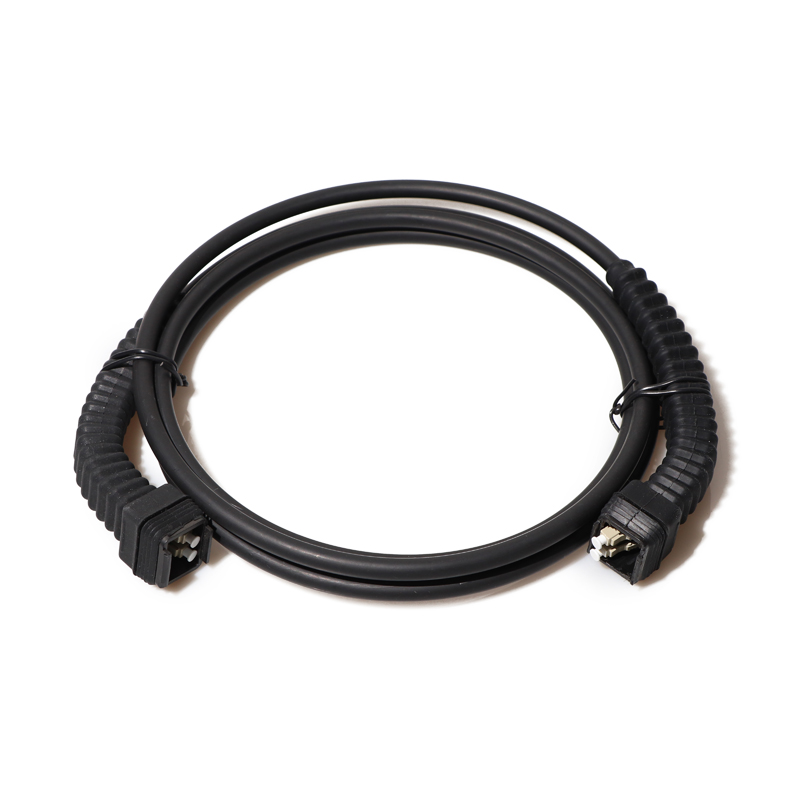

CPRI 7.0mm Outdoor Waterproof Patch Cord 2 Core Flexible Uniboot Duplex LC

Name: CPRI 70mm Outdoor Waterproof Patch Cord 2 Core Flexible Uniboot Duplex LC
Brand: Unifiber or OEM
Price: 1 USD

Wholesale CPRI 7.0mm Outdoor Waterproof Patch Cord 2 Core Flexible Uniboot Duplex LC from china suppliers

Brand Name : Unifiber or OEM

Model Number : FTTA CPRI NSN Uniboot Duplex LC Outdoor Waterproof Patch Cord

Certification : ROHS

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500pcs/day

Delivery Time : 3~5 days

Packaging Details : Carton box

Product : FTTA CPRI NSN Uniboot Duplex LC Outdoor Waterproof Patch Cord

Connector : Flexible Uniboot Duplex LC with NSN Boot

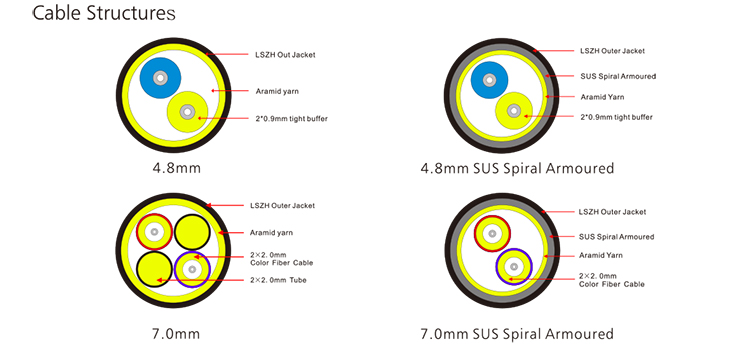

Cable diameter : 7.0mm

Fiber type : SM 9/125,MM 50/125,MM 62.5/125

Fiber count : 2 core

Application : FTTA

Contact Now

CPRI fiber patch cable is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions. Especially in the 3G, 4G, 5G Base station (BBU to RRU). CPRI fiber patch cable are rapidly becoming the standard connector interface.

CPRI 7.0mm Outdoor Waterproof Patch Cord 2 Core Flexible Uniboot Duplex LC

APPLICATION

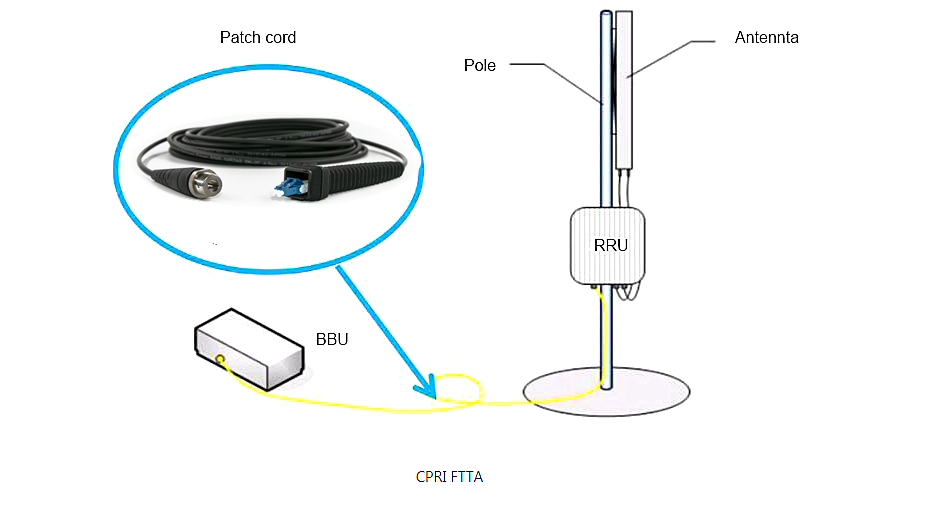

Multi-purpose Outdoor For connection between distribution box and RRH Deployment in Remote Radio Head cell tower applications

FEATURES

Easily add/install jumper cables for a future expansion Factory-assembled cables for a fast on-site installation IP67 water and dust protection Flexibility with small bending radius and excellent cable routing properties Equipped with customer specific power and fiber-optic connectors



Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥30dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

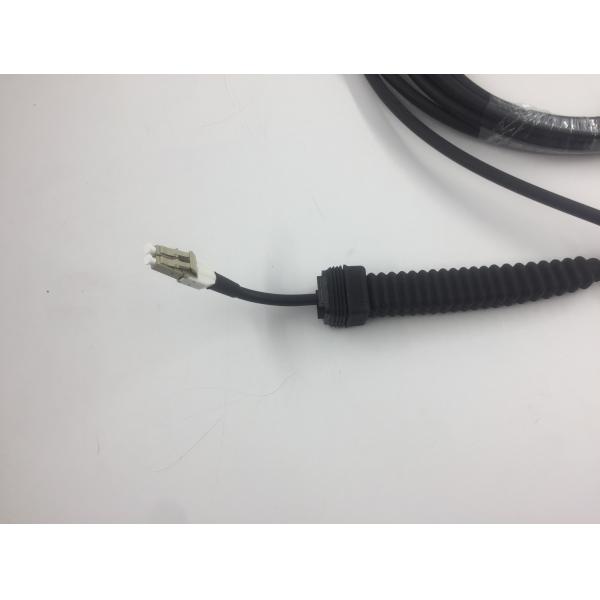

CPRI 7.0mm Outdoor Waterproof Patch Cord 2 Core Flexible Uniboot Duplex LC
