2 4 7 Way Hdpe Microduct Pipe Direct Buried For Optic Fiber Air Blowing Cable

Name: 2 4 7 Way Hdpe Microduct Pipe Direct Buried For Optic Fiber Air Blowing Cable
Brand: Unifiber or OEM
Price: 1 USD

Wholesale 2 4 7 Way Hdpe Microduct Pipe Direct Buried For Optic Fiber Air Blowing Cable from china suppliers

Brand Name : Unifiber or OEM

Model Number : HDPE micro duct

Certification : ROHS

Place of Origin : China

MOQ : 10km

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 50km/day

Delivery Time : 3~5 days

Packaging Details : wooden drum

Product : 2 4 7 way HDPE micro duct

Material : HDPE

Diameter : 14/10 12/8 10/6 mm

Thickness : 0.75mm-2.0mm

Installation : underground installation

Color : White, red, green, blue Fully colored

Contact Now

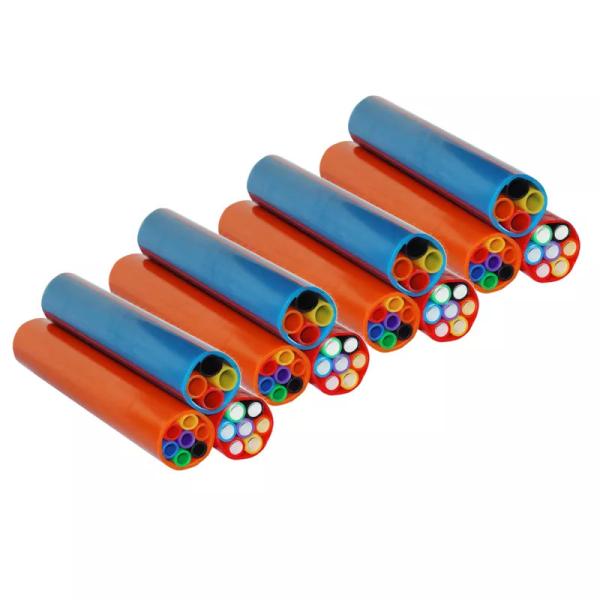

Microduct assemblies are available for several installation environments such as direct buried installation, into existing pipes or for indoor installation. Microducts are characterised by heavy wall microducts and a relatively thin outer sheath. The thickness of each inner tube allows individual tubes to be used direct bury solution. The microducts themselves are rugged enough to protect the fiber cables inside. Micro ducts are made of HDPE and have a low friction inner surface for best blowing performance.

Features

Permanant solid silicon lubricant layer in the inner wall.
Longitudinal ribbed inner wall of microduct to further reduce the friction coefficient of duct so as to be beneficial to cable blowing.
Maximal accommodation is 288C micro cable.
Can be placed into the existing pipe system to fulfill the pipe hole expansion.
Reduce the construction cost, and shorten the construction period.

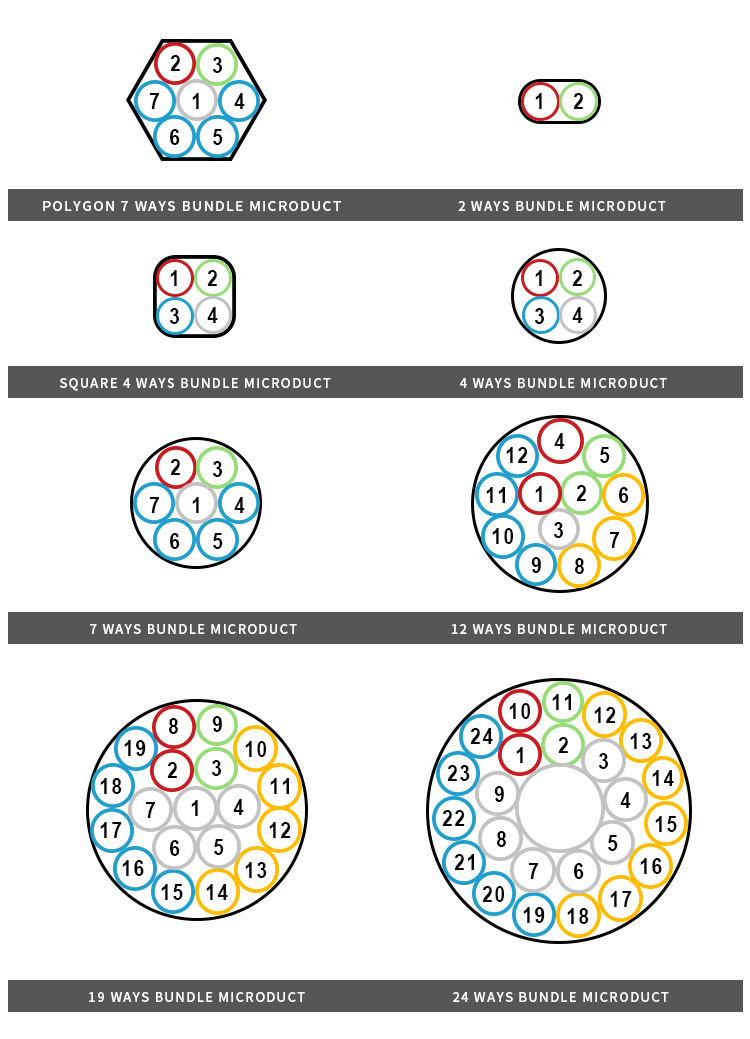

Micro Structure

The micro duct is manufactured from HDPE, extruded from 100% virgin material. The color shall be grey (central duct), red, green, blue, yellow, orange, grown or other customized.

O.D	I.D	Wall Thickness	Weight	Drum Size
7	3.5	1.75	0.266	2000x1100
7	4	1.5	0.247	2000x1100
10	6	2	0.430	2350x1100
12	8	2	0.531	2200x1100
14	10	2	0.631	2200x1100
16	12	2	0.736	2200x1100
20	16	2	0.929	2350x1100
