Indoor Armored Fiber Optical Patch Cord Singlemode SC/APC To SC/APC Rugged Stainless Steel

Name: Indoor Armored Fiber Optical Patch Cord Singlemode SCAPC To SCAPC Rugged Stainless Steel
Brand: UNIFIBER-OEM
Price: 1 USD

Wholesale Indoor Armored Fiber Optical Patch Cord Singlemode SC/APC To SC/APC Rugged Stainless Steel from china suppliers

Brand Name : UNIFIBER-OEM

Certification : ROHS

Place of Origin : CHINA

MOQ : 10PCS

Price : Negotiable

Payment Terms : T/T, Western Union

Connector type : FC/SC/LC/ST

Cable diameter : 3.0mm

Cable color : Blue(SM) or Gray(MM) or Customized

Fiber Count : 1/2/4/6/8 fibers

Cable jacket : PVC/LSZH/OFNR

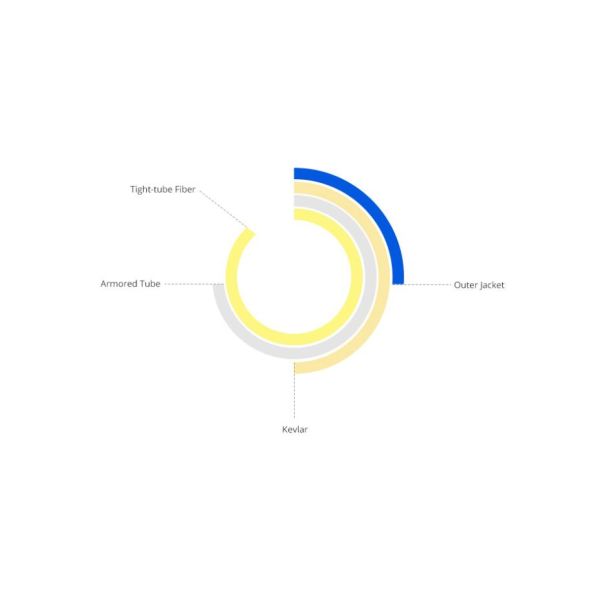

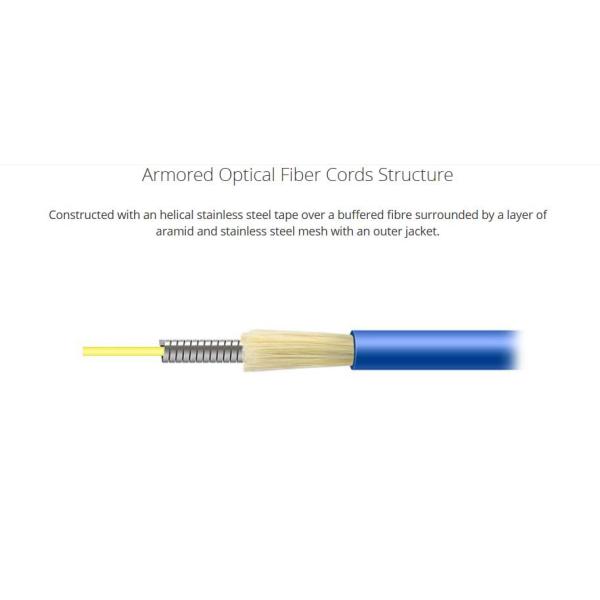

Fiber Cords Structure : Single Armored, Stainless Steel Tube

Contact Now

Indoor Armored Fiber Patch Cord,Singlemode SC/APC to SC/APC, Simplex,Rugged Stainless Steel,Blue color,LSZH

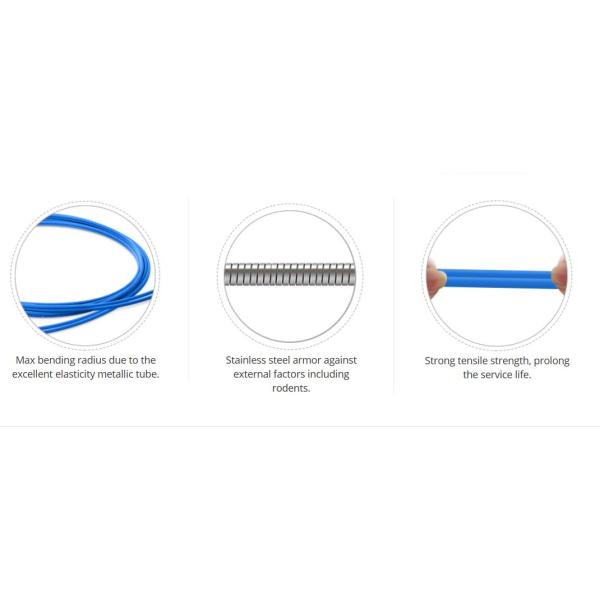

Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.

Indoor Armored Fiber Optical Patch Cord Singlemode SC/APC To SC/APC Rugged Stainless Steel

APPLICATION

1. Telecommunications

2. CATV, LAN, MAN, WAN, Test &Measurement

3. Military industry

4. Medical

FEATURES

1. Low insertion loss and back reflection loss

2. Ferrule end surface pre-domed

3. Excellent mechanical endurance

4. Good in repeatability

5. Good in exchange

6. Green Production, CE, RoHS Standard

Parameters

Item	SingleMode	MultiMode
Insertion loss	≤0.2dB	≤0.3dB
Return loss	PC≥50dB, APC≥55dB, UPC≥60dB
Insert-pull test	1000 times
Repeatability	≤0.1
Tensile strength	≥10kg
Operating temperature	-40℃~ +85℃
Ceramic ferrule spec	125.5um concentricity deviations:≤1μm	127um concentricity deviations:≤3μm
Suitable fiber	9/125μm	50/125μm, 62.5/125μm
