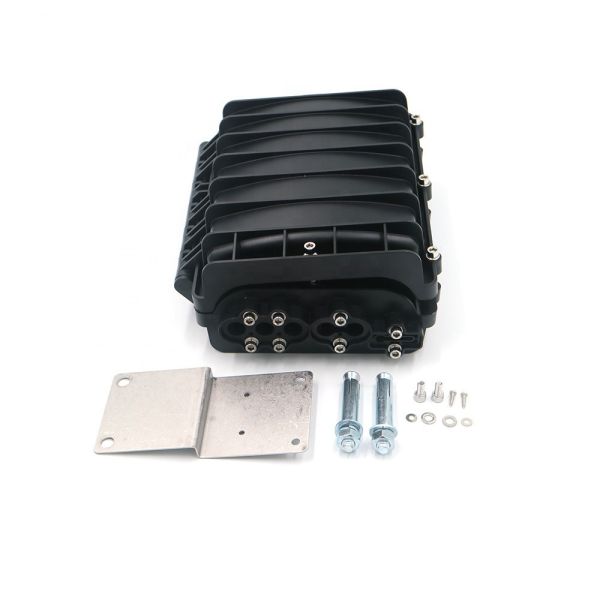

Wall Mount ABS PC 60 Core FTTH Optical Fiber Closure

Name: Wall Mount ABS PC 60 Core FTTH Optical Fiber Closure
Brand: UNIFIBER
Price: 1 USD

Wholesale Wall Mount ABS PC 60 Core FTTH Optical Fiber Closure from china suppliers

Brand Name : UNIFIBER

Model Number : GPJ09-8201

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/day

Delivery Time : 5-8days

Packaging Details : Carton box

Material : ABS+PC

Capacity : 60F

Entrances : 5

Performance : Anti-UV, Ultra violet resistant and rainfall resistant

Outside dimension (LxWxH) : 300×220×100

Diameter of fiber cable : 8~15 (mm)

Contact Now

FTTH wall mount optical fiber closure mechanical sealing 60 core

GPJ09-8201 inline closure features 5 branch ports, 1 test port, and 4 drop ports. The patented mechanical sealing method for this joint closure reduces the installation cost and increases the sealing stability. In PON solutions, this horizontal enclosure can be applied to the entrance of up to 24 uncut figure-8 or round cables. 1 piece of 1:8 mini PLC splitter can be installed on each splice tray.

Features:

Small size with numeral cable ports and various functions.
5 regular cable ports, 1 testing port, 4 pigtail outlets.
Unique sealing method obtained the national patent, which greatly reduce operation cost improve the sealing performance and could be reused many times.
Aerial, pole-mounting, Direct buried, and wall-mouing and pipe-lined applications.

Model No.	GPJ09-8201
Style	Hinged
Dimensions (L×W×H)	300×220×100 mm
Material	PP+GF
Sealing Type	Mechanical Seal
Protection Grade	IP68
Cable Ports	Branch	5	Φ8 - Φ15 mm
	Test	1	Φ6 mm
	Drop	4	Φ2 mm
Fiber Splice Capacity	60
Tray Capacity	12
Tray Count	5
Splitter	1:8 Mini PLC/ Tray
Weight	2.4 - 2.7 kg
Application	Wall Mounting/ Aerial/ Manhole
Packing Type	Inner Carton		-
	Outer Carton		540×340×720 mm (10 PCS)

Wall Mount ABS PC 60 Core FTTH Optical Fiber Closure
