PVC/LSZH Jacket 0.9mm Buffer Distribution Fiber Cable

  • 1
  • 2
  • 3

Brand Name : UNIFIBER-OEM

Model Number : GJFJV

Certification : ROHS,CE,UL

Place of Origin : CHINA

MOQ : 1KM

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000km/month

Delivery Time : 3-5days

Packaging Details : Wooden drum.

Fiber counts : 2~48core

Fiber mode : singlemode/multimode/OM2/OM3/OM4

Cable structure : 0.9mm Tight Buffer Distribution Cable

Application : Indoor Multi Purpose Distribution

Materiail : PVC/LSZH/PE

Color : Yellow/Orange/Aqua

Contact Now

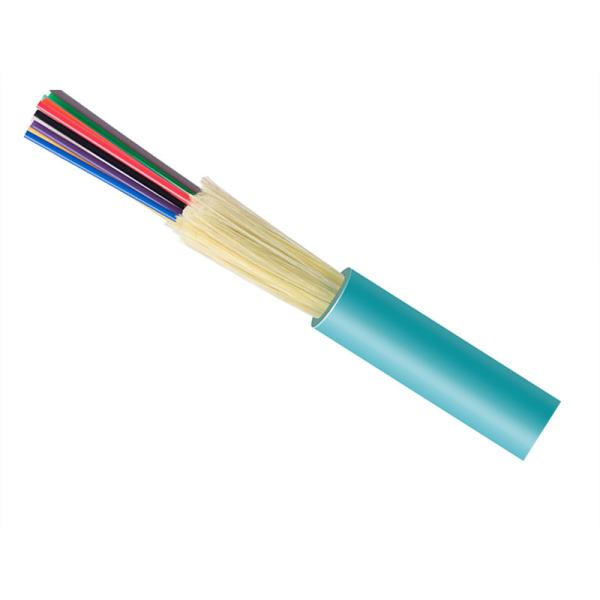

12/24 core OM3/OM4 indoor 0.9mm tight buffer distribution fiber cable PVC/LSZH jacket aqua color

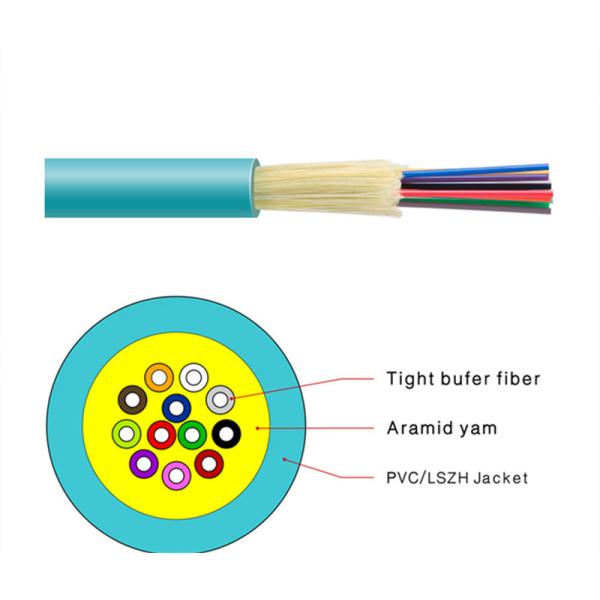

Multi-Purpose Distribution cable use several Φ900µm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.

Features:
Tight buffer fiber easy of stripping.
Tight buffer fiber have excellent flame-retardant performance.
The outer jacket material have many advantages such as anti-corrosion anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Aramid yarn as strength member make cable have excellent tensile strength

Application:

Indoor any purpose cable distribution.
Backbone distribution cable in a building.
Multi optical fiber jumper.

Technical parameters
cable count out sheath diameter Tight buffer diameter Weight
Minimum allowable Tensile strength(N)
Minimum allowable Crush load(N/100mm)
Min bending radius(MM)
Suitable temperature
(core) (MM) (MM) (KG)
short term
long term
short term
long term
short term
long term		 (℃)
02 3.0 0.9 15.00 600 200 1000 200 20D 10D -20+60
04 4.0 0.9 22.00 600 200 1000 200 20D 10D -20+60
06 4.0 0.9 23.00 600 200 1000 200 20D 10D -20+60
08 5.0 0.9 27.00 600 200 1000 200 20D 10D -20+60
10 5.5 0.9 30.00 600 200 1000 200 20D 10D -20+60
12 6.0 0.9 35.00 600 200 1000 200 20D 10D -20+60
24 7.0 0.9 40.00 600 200 1000 200 20D 10D -20+60
48 8.5 0.9 48.00 600 200 1000 200 20D 10D -20+60

PVC/LSZH Jacket 0.9mm Buffer Distribution Fiber CablePVC/LSZH Jacket 0.9mm Buffer Distribution Fiber Cable
