OM3 850nm 40GBASE-SR4 40G QSFP+ Active Optical Cable

Compatible 40G QSFP+ Active Optical Cable, OM3 850nm 40GBASE-SR4 Ethernet AOC cable

QSFP to QSFP Active Optical Cables are a high performance, low power consumption, long reach interconnect solution supporting InfiniBand QDR/DDR/SDR,1.25G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.This QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. And it is one kind of parallel transceiver which provides increased port density and total system cost savings.UNIFIBER 40G QSFP+ AOC active optic cables are designed for 40G Ethernet links reach up to 300m (OM3) or 400m (OM4) over Multi-Mode Fiber (MMF).

Features:
Hot-pluggable QSFP+ form-factor connectors
4 channels full-duplex active optical cables
4x 850nm VCSEL array and PIN photo-detector array
Differential AC-coupled high-speed data interface
Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4
Data rate up to 41.2Gbps
Length up to 300m over OM3 MMF
Power consumption < 1.5W per end
Operating case temperature range from 0°C to 70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications:
40GBASE-SR4 Ethernet
InfiniBand 4xSDR/DDR/QDR

40G Ethernet AOC Cable

QSFP+ Active AOC Cable

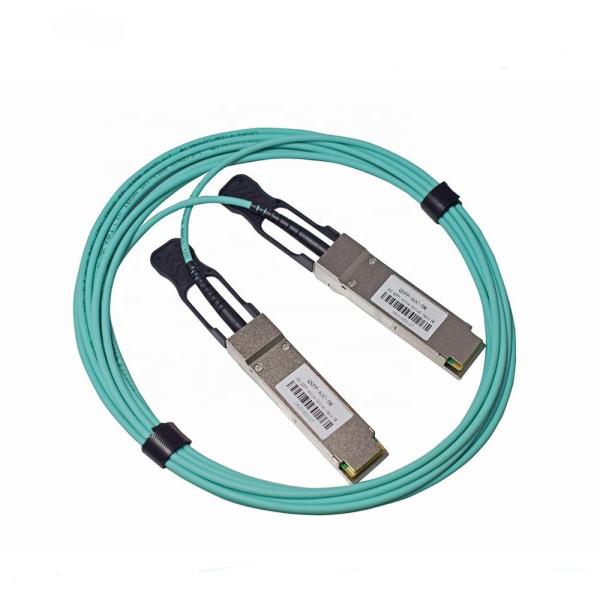

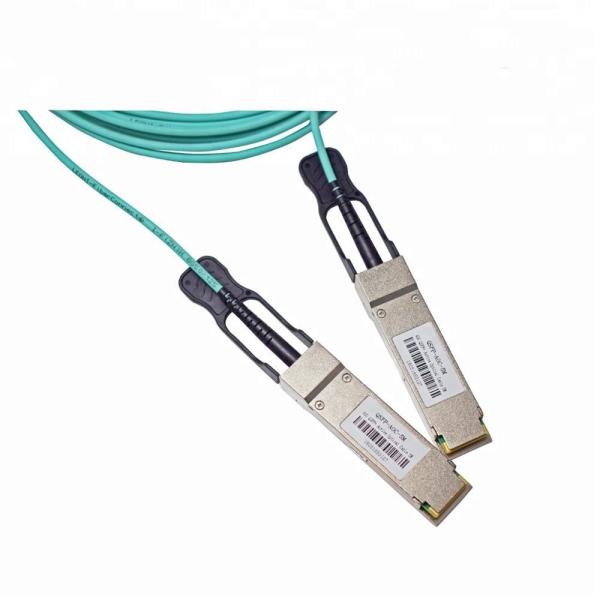

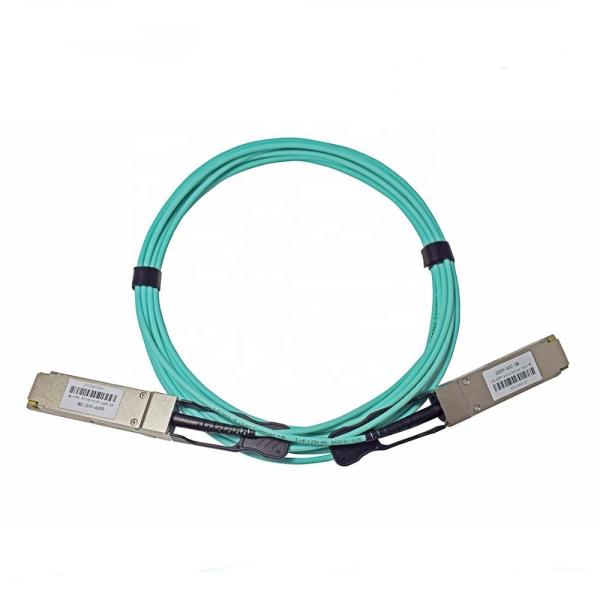

OM3 850nm 40GBASE-SR4 40G QSFP+ Active Optical Cable Images
