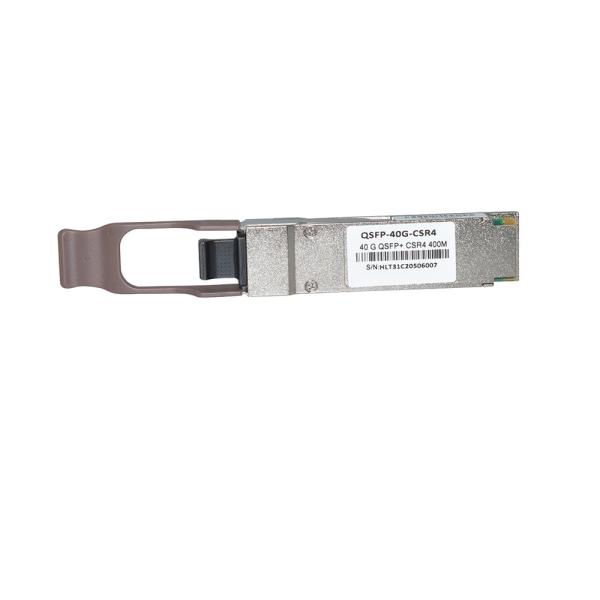

40G QSFP+ CSR4 MMF 850nm OM4 Multimode Fiber Transceiver

Name: 40G QSFP CSR4 MMF 850nm OM4 Multimode Fiber Transceiver
Brand: UNIFIBER-OEM
Price: 1 USD

Wholesale 40G QSFP+ CSR4 MMF 850nm OM4 Multimode Fiber Transceiver from china suppliers

Brand Name : UNIFIBER-OEM

Model Number : 40G QSFP+

Certification : CE RoHS FCC

Place of Origin : CHINA

MOQ : 5pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 5~7 Business days

Packaging Details : Individual package

Wavelength : 850nm

Data Rate : 40G

Transmission Distance : 400M

Interface : MPO

Brand : Can Be Customized

Contact Now

40G QSFP+ CSR4 MMF 850nm 400M OM4 multimode fiber transceiver

40G QSFP+ transceivers include SR4, eSR4, LX4, LR4 Lite, IR4 PSM, LR4 PSM, LR4, ER4 and BiDi series.

Features :
4 independent full-duplex channels
Up to 11.2Gbps data rate per channel
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
Capable of over 400m transmission on OM4 multi-mode ribbon fiber
Single +3.3V power supply
Operating case temperature:0~70C
Maximum 1.5W operation power
RoHS-6 compliant
Compliant with IEEE802.3ba
Compliant with QSFP+ MSA:SFF-8436

Applications :
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections

ordering information
Part Number	Product Description
QSFP-40G-SR4	QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M
QSFP-40G-CSR4	QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 300M/400M
QSFP-40G-LR4	QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
QSFP-100G-SR4	QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M
QSFP-100G-LR4	QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM

40G QSFP+ CSR4 MMF 850nm OM4 Multimode Fiber Transceiver

Product Tags:

40G Sfp Transceiver

400M Optical Fiber Transceiver
