SC/APC To SC/APC 1.6mm G657A2 Fiber Optical Patch Cord

Name: SCAPC To SCAPC 16mm G657A2 Fiber Optical Patch Cord
Brand: UNIFIBER-OEM
Price: 1 USD

Wholesale SC/APC To SC/APC 1.6mm G657A2 Fiber Optical Patch Cord from china suppliers

Brand Name : UNIFIBER-OEM

Model Number : UNFSCASCA03

Certification : ROHS

Place of Origin : CHINA

MOQ : 10PCS

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Individual package

Fiber Count : Simplex

Cable jacket : PVC/LSZH/OFNR

Connector type : FC/SC/LC/ST

Cable color : Yellow/Orange/Aqua or customized

Diameter : 1.2/1.6/2.0/3.0mm

Fiber : G652D G657A

Contact Now

Ivory white patch cable SC/APC to SC/APC 1.6mm G657A2 1/3/5m OFNR/LSZH jacket

The 1.2mm/1.6mm patch cord normally to be used where is limited space, it as other standard patch cable jacketed with PVC/LSZH and then completed with SC. ST. FC or LC connectors. It provides a stable and reliable connection both SM or MM and single or dual fiber. PC, UPC and APC is optional.any color would be ok.

Application:
Data Center hight density cabling
Optical Fiber Communication System
FTTH,LAN,PON & Optical CATV.Telecom
Optical Fiber Test Equipment

Features

Superior quality standard PC/UPC/APC polishing;
100% factory test (Insertion Loss & Return Loss);
0.9mm,1.2mm,1.6mm, 2.0mm and 3.0mm cable optional.

Low Insertion Loss

High return Loss
High stability and reliability

Technical Parameters:

Mode	Singlemode
Connection Style	Simplex
Connectors	SC APC to SC APC
Diameter	1.2/1.6/2.0/3.0mm
Fiber	9/125um
Polish Type	APC
Typical Insertion Loss	≤ 0.20 dB
Maximum Insertion Loss	≤ 0.30 dB

SC/APC To SC/APC 1.6mm G657A2 Fiber Optical Patch Cord

Product Tags:

OFNR LSZH jacket fiber optic patch cable

APC polish optical fiber patch cord

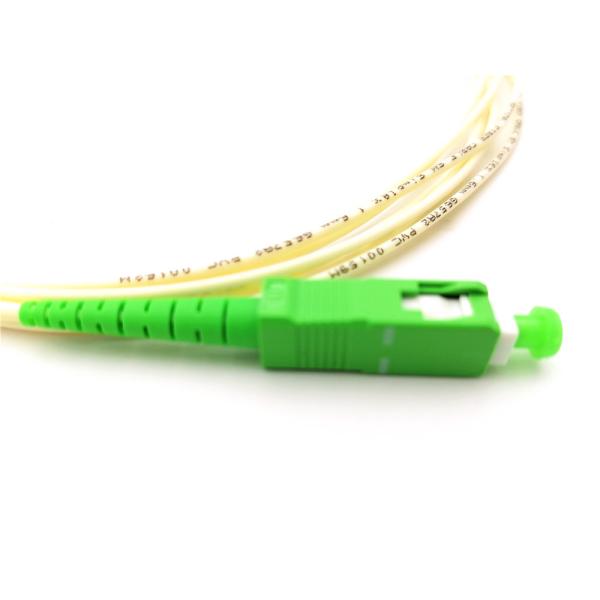

SC/APC To SC/APC 1.6mm G657A2 Fiber Optical Patch Cord Images
