FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket

Name: FTTX Fiber Cable Assembly Waterproof Duplex H Connector SCAPC To SCAPC PE Jacket
Brand: UNIFIBER-OEM
Price: 1 USD

Wholesale FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket from china suppliers

Brand Name : UNIFIBER-OEM

Model Number : Optitap MINI SC

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs/day

Delivery Time : 3-5days

Packaging Details : PE bag

Cable diameter : 3.0mm/4.8mm/7.0mm

Cable jacket : LSZH,PE,TPU,UV resistance

Cable length : 1/3/5/10m Or Customized

Fiber count : 2 fiber

Fiber : G657A

Connectors : mini SC/APC

Contact Now

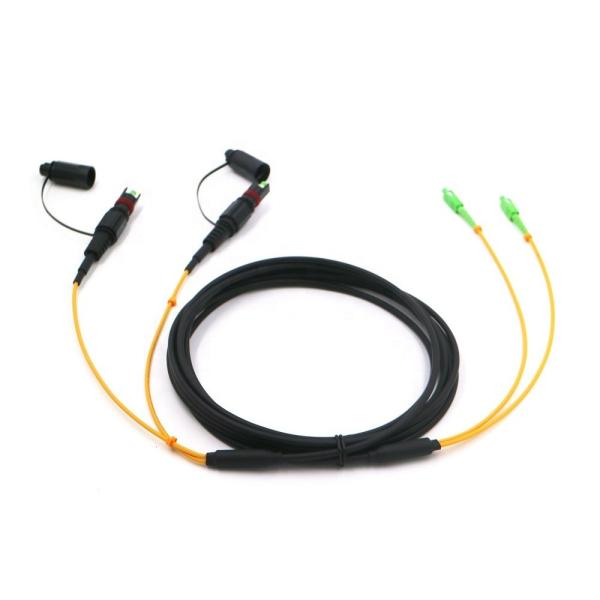

FTTx waterproof duplex H connector Corning OptiTap compatiable mini SC/APC to SC/APC fiber jumper cables PE jacket

Corning Optitap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. It provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations.Corning Optitap/H connector utilizes optical fiber cables upon which network access points are pre-installed at customer-specified locations along the length of the cable.

Feature

No installation tools requires;

IP-68 water and dust protection;

Low profile in-line receptacle available;

Factory terminated for high performance;

Accepts 2.0mm to 7.0mm cable diameters;

Application
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;

Suitable for FTTA and outdoor temperature extremes;

Ensures functionality in harsh weather environments ;

Can be installs without special tooling;

Provides bend protection for installation and long term use.

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥30dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket
