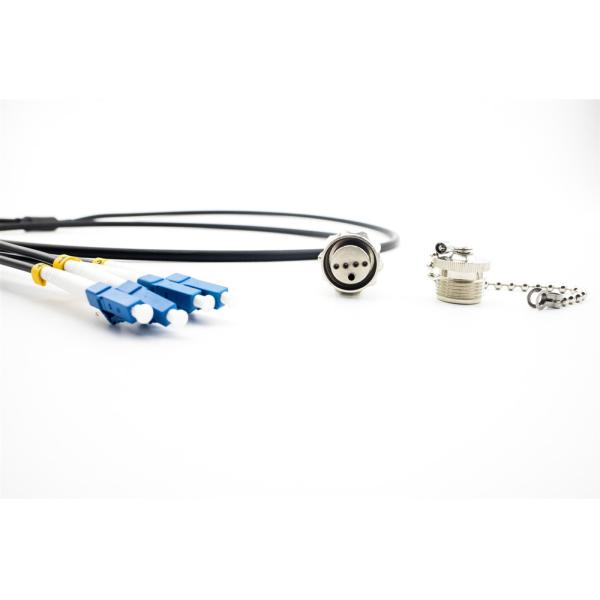

4 core ODC plug/socket to LC/UPC single mode waterproof patch cord for Intelligent substation/Railway signal control
ODC fiber optic patch cables with extremely robust outdoor connector are designed to withstand harsh environment such as mechanical loads, high thermal exposure, and demanding environments like rain, salt and splash water. It is known for their ease of installation and highest operation safety due to the robust and ruggedized design. ODC military grade cables are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.
Application
Far transmission wireless base station.
Video Surveillance system
Optical fiber sensor.
Railway signal control
Intelligent substation
Outdoor & Military communication equipment connection.
Oil field, mine communication connection.
Features
High shock, vibration, and mechanical resistance
IP68 protection, salt-mist proof and EMI protection
Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
Easy, reliable and cost-effective installation.
Broad temperature range and wide range of indoor and outdoor cables
Parameters
| Fiber Core | 2,4 |
| Mode | Singlemode | Multimode |
| Operating Wavelength(nm) | 1310/1550 | 850/1310 |
| Polishment | UPC | APC | UPC |
| Insertion Loss(Max.dB) | 0.7 | 0.6 |
| Return Loss(Min.dB) | 55 | 60 | 35 |
| Mating times | 500 Min |
| Durability(Max.dB) | 0.2 |
| Reaptability(Max.dB) | 0.5 |
| Operating Temperature(℃) | -40~+85 |
| Storage Temperature(℃) | -40~+85 |
