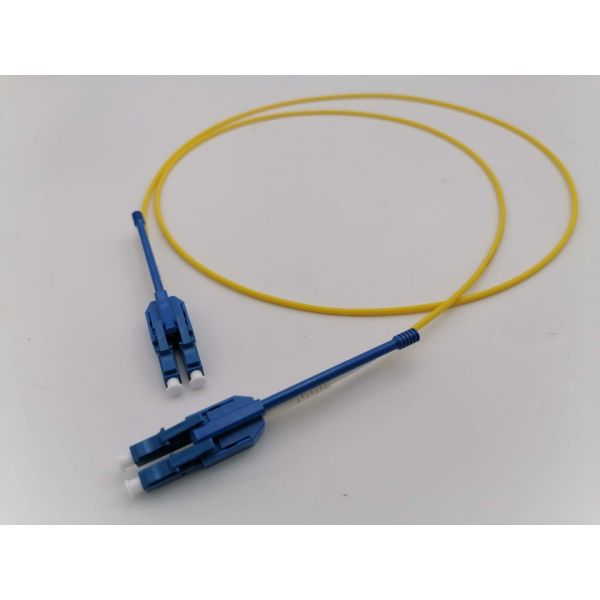

2.0mm LC UPC To LC UPC Uniboot OS2 Single Mode Patch Cord LSZH

Brand Name : UNIFIBER-OEM

Model Number : Uniboot with Push Pull Tabs

Certification : ROHS

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3~5 business days

Packaging Details : PE bag

Product : Uniboot with Push Pull Tabs

Fiber Type : OS2 9/125um

Connector : Switchable Uniboot LC

Cable Jacket : LSZH

Fiber : G657A1 or G657A2

Color : Yellow

Fiber Counts : Duplex

Length : 1/2/3/5/7M or others

Contact Now

LC UPC to LC UPC Uniboot with Push Pull Tabs allows two fibers to be carried through a 2.0mm single jacket, used in high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Application

Optical access network

Fiber optic communication networks

Data center ultra high-density cabling

Telecommunication networks

Features

Optional push/pull tab

Easily switch polarity without tools or damage to fiber

Bend insensitive fiber on all Multimode fibers, optional for Single Mode fibers

Flexible plenum rated jacket

Available in OM3, OM4 and OS2
Custom lengths, jacket colors and labeling options Uniboot (one boot) design

Connector
LC to LC Uniboot Polarity Reversible
Jacket OD
2.0mm
Fiber Mode
SM/MM/OM3/OM4
Jacket Color
Yellow/Aqua / Violet / Purple
Polish
UPC to UPC
Wavelength
1310/1550nm or 850/1300nm
Fiber Type
Duplex
Jacket Material
LSZH / PVC / OFNP
Insertion loss
≤0.3dB
Attenuation at 850nm
3.0 dB/km
Return loss
≥30dB
Attenuation at 1300nm
1.0 dB/km
Operating temperature
-40~75°C
Storage temperature
-45~85°C
Polarity
A(Tx) to B(Rx)
Minimum Bend Radius
30 mm

2.0mm LC UPC To LC UPC Uniboot OS2 Single Mode Patch Cord LSZH
